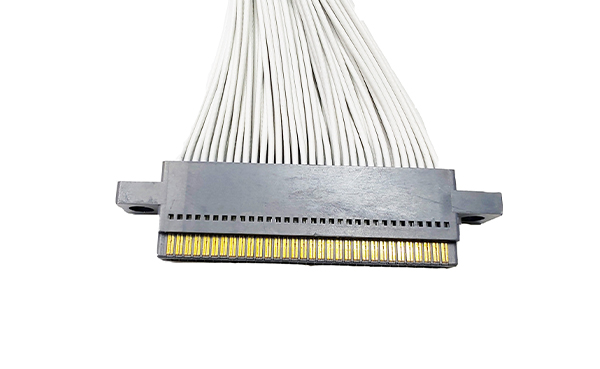

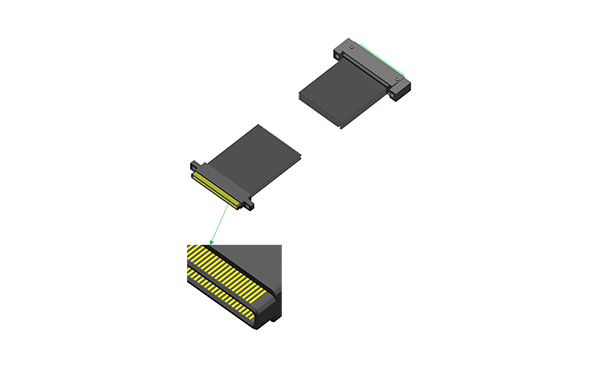

    High-speed Connector To PCB Cable Assembly (1.8Ghz)

    Features

    Data Rate：3.6Gbps

    Impedance：50Ω

    Insertion Loss：< -2.0dB@1Ghz, @cable 0.6m；< -3.0dB@1.8Ghz, @cable 0.6m

    Return Loss：< -20dB@0~1.8Ghz

    Rated Voltage：DC 50V

    Current：1A/PIN（power）

    Withstand Voltage：360VAC

    Contact Resistance：≤ 80mΩ

    Insulation：1000MΩ

    Pin Number：256 Pin /320 Pin

    Insertion Force：50N Max.

    Extraction Force：15N Min.

    Test Life (Connector) ：10,000
